AEM 400lph High Pressure In-Line Fuel Pump

Share
Compatible with Bosch "044" Type Controller for 120psi Pump
In stock
Barcode
840879024086
SKU
50-1005
$200.00 $161.29

AEM’s 400LPH High Flow, High Pressure Fuel Pump is capable of supporting over 1,200 HP normally aspirated and a whopping 860 HP at 30 psi boost!* It flows 400LPH (100 gph) at 40 PSI, 340LPH (90 gph) at 73 PSI, and 270LPH (71 gph) at 120 PSI. The AEM 400lph High Flow Fuel Pump is designed for use with gasoline. Alcohol fuels can be used, but pump life will be diminished.

  • 05 Hrs
  • 18 Min
For next dispatch

High Pressure Fuel Pump.

Similar Pump Body Dimensions to Bosch 044 Pump.

400lph Inline High Flow Fuel Pump



AEM's 400LPH AN Fittings High Flow, High Pressure Fuel Pump is designed for high performance naturally aspirated and forced induction EFI vehicles. It can be installed externally or in-tank using optional hardware that is sold separately. It utilizes the industry standard “044 Style” envelope and -10 AN female inlet and -6 AN female outlet connections for easy installation on new applications and for quick replacement of existing competitor fuel pumps. The 50-1005 fuel pump delivers incredible performance and value.

AEM’s 400LPH High Flow, High Pressure Fuel Pump is capable of supporting over 1,200 HP normally aspirated and a whopping 860 HP at 30 psi boost!* It flows 400LPH (100 gph) at 40 PSI, 340LPH (90 gph) at 73 PSI, and 270LPH (71 gph) at 120 PSI.

The AEM 400LPH AN Fittings High Flow Fuel Pump is rated for use with ethanol-blended fuels, (E85/E90) and all types of gasoline, but pump life will be diminished if used with 100% ethanol fuels. The inlet thread is a -10 AN female ORB (O-ring port fitting) and the discharge is a female -6 AN ORB (O-ring port fitting).

A male -6 to -8 AN discharge fitting with integral high pressure check valve, terminal nuts, terminal boots and installation instructions are included. Optional accessories that are sold separately include a -10 ORB fitting inlet pre-filter (for use with in-tank installations), and both -8 and -6 discharge adapters without integral check valves. Accessory fittings are hard anodized.

  • Designed for high output naturally aspirated and forced induction EFI vehicles
  • Popular “044 Style” physical configuration but with AN inlet & discharge port connections
  • Maintains very high flow even at boosted fuel pressures: 340 lph @ 73 PSI (30 psi boost)
  • Installs externally or in-tank
  • Each pump individually tested to flow minimum of 400lph (100gph) @ 40 PSI
  • For gasoline vehicles (pump life will be diminished when used with alcohol fuels)
  • Kit includes fuel pump, -6 to -8 male AN discharge fitting with check valve, terminal nuts & boots, instructions
  • Optional -10 ORB fitting pre-filter, -6 and -8 discharge adapters without the integral check valves


*Power rating given using gasoline and assuming a base fuel pressure of 43 PSI, 13.5v at the pump with a BSFC of 0.5. Boost fuel pressure is assumed to be the base pressure of 43 PSI boost pressure. Flow capability for horsepower support is ultimately dependent on fuel hose diameter, and system electrical voltage and amperage capabilities.

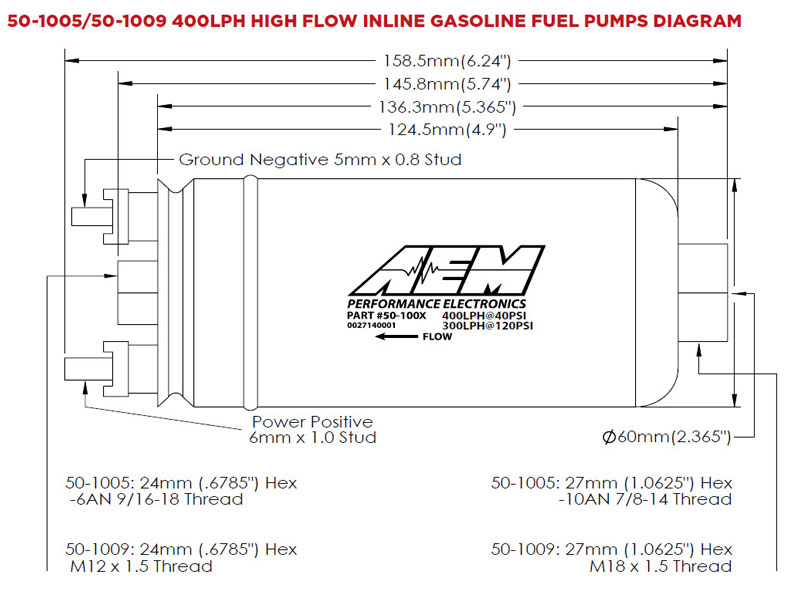

Dimensional Drawing



TECHNICAL SPECS:



Weight: 12.5oz (354grams)

Outside Diameter: 60mm OD

External Materials: Black plated steel with laser etching, with zamac discharge end cap

Inlet Fitting: -10AN 7/8"-14 Female

Outlet Fitting: -6AN 9/16"-18 Female

PRV Activation: 150 PSI

Impeller Design: Roller vane with ceramic end plate



VOLTAGE SPECS:



Connector Terminal: 6mm stud positive, 5mm stud negative

Min Voltage Input: 10 volts

Max Voltage Input: 18 volts

Current Draw (40 psi): 9.73 amps no check valve, 10.68 amps with check valve (13.5v)

Current Draw (120 psi): 16.07 amps no check valve, 17.13 amps with check valve (13.5v)

Fuse: 25 amps (13.5v), 30 amps (13.5v) MAX
