Defi Black Advance CR 60mm Water Temperature Gauge 120°C
Racedom is proud to supply the car enthusiast with a large selection of Defi Gauges. Defi Gauges have been the number one choice for aftermarket gauges that are utilized by those who participate in all varieties in motorsports.
Here, you are looking at the Defi Advance CR Water Temperature Gauge. This is a great and accurate way to monitor your coolant temperatures under high-performance driving conditions such as auto-x, weekend track events, or even for daily driving.
NOTE: Requires the CR Controller that is sold separately
Include:
- Advance CR Water Temperature Gauge
- 60mm in size
- Reads up to 120°C
- Includes gauge cup
- Includes mounting hardware
- Includes water temperature probe
- Includes mounting hardware
Specifications
- Brand: Defi
- Gauge Range: 20 - 120 C
- Gauge Sending Unit: Mechanical
- Gauge Type: Water Temperature
- Requires Control Unit: Yes
- Units: Metric
Summary
Defi-Link Meter ADVANCE CR is gauge series that need to be connected to Defi-Link ADVANCE Control Unit.
- *Defi-Link ADVANCE Control Unit (sold separately) is necessary to operate CR gauges.
- *Defi-Link Meter ADVANCE CR is expressed as ADVANCE CR or CR gauges.
- Turbo/boost/in-mani, oil press, fuel press, oil temp, water temp, exhaust temp, and tachometer are available.
Color: White and black dials are available.
Size: 52mm and 60mm are available. (the Only 60mm is available regarding turbo120kPa, in-mani, fuel press, exhaust temp, and tachometer.) - Illumination color: Can be changed between two colors.
White dial: Blue/Amber red
Black dial: White/Amber red - One ADVANCE Control Unit operates up to 7 gauges or displays in total.
Productions of 52mm turbo120kPa, in-mani, fuel press, exhaust temp were ended in December 2012.
Main specifications, functions, and features
- ADVANCE System
- ADVANCE Control Unit necessary
- Commercial attachment necessary
- Stepping motor: STS26/VS2
- Display color: dial white/black
- Illumination color: Black dial->white/red, White dial->blue/red
- Illumination ON/OFF: interlocked with vehicle illumination switch
- LED illumination
- Indicator output
- Built-in indicators
- Driving data can be recorded & replayed
- Opening mode/Ending mode
- Size: 52mm/60mm
- The applicable number of cylinders: 1, 2, 3, 4, 5, 6, and 8
- Mounting bracket attached
- *The illumination would be automatedly turned ON/OFF by connecting to ADVANCE ZD.
Features
- An interactive communication advanced system is implemented.
- Gauges can be controlled from distance with the included switch unit.
- Flat glass and precise graduation scale give more needle accuracy and high visibility.
- Opening and closing modes can be selected from 2 variations.
- The installation of additional gauges is easy. Just connect it with the other two gauges and attach the wire to Advance Control Unit.
- The illumination at night can be switched between 2 different colors.
(White dial: amber red/blue; Black dial: white/amber red) - The outer edge of the gauge illuminates in red at night.
- The needle pointer driven by the original stepping motor has a smooth instantaneous response to the rapid acceleration of high-performance vehicles.
- The microcontroller calibrates up to a 270-degree angle in 3027 – 4600 segments (0.088°- 0.059°), and provides accurate vehicle information.
- The self-diagnosis system turns the warning LED on to indicate any wire disconnection, short circuit, and serial communication errors.
- Warning by buzzer sound when the warning LED is on (buzzer sound can be turned on / off).
- Peak value and warning value during driving are stored. Driving data can be stored and replayed up to 3 minutes.
- A mounting bracket, meter cup, regular position bezel are provided with this product.
- With both fuel pressure gauge and turbo installed, differential pressure can be monitored on the fuel pressure gauge screen.
Specifications

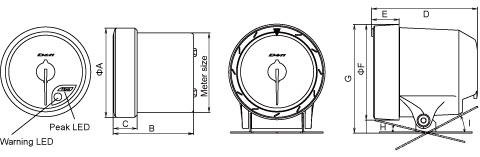

Size
| Gauge size | 52mm | 60mm |
| A | 58.3 | 66.3 |
| B | 52.2 | 52.2 |
| C | 15.5 | 15.5 |
| D | 68.6 | 68.6 |
| E | 17.8 | 17.8 |
| F | 62.5 | 70.5 |
| G | 69.6～71.1 | 77.6～79.1 |
| H | 15 degrees | 15 degrees |
| I | 28 degrees | 32 degrees |
Other specifications
| Power supply voltage |
Supplied from Defi-Link ADVANCE Control Unit |
| Current consumption | Maximum during 7 gauges are connected +B 2A(IGN ON), 5mA(IGN OFF) ILM 800mA |
| Dial plate color | White or Black |
| Illumination color | White dial: changeable between amber red and blue Black dial: changeable between white and amber-red Ring: red Pointer: red Warning LED: red Peak LED: blue |
| Display range | Refer to each gauge page. |
| The applicable number of cylinders | 1,2,3,4,5,6,8 |
| Note |
*Products are for only on vehicles with a 12V electrical system. Never use products on 24V vehicles. |
ADVANCE System connection
The Defi-Link ADVANCE system allows gauges and displays to be attached to the ADVANCE control unit with a single “DAISY CHAIN” wiring system.
ADVANCE gauges, displays, and Control Unit are equipped with microcomputers. Distant gauges and displays can be operated at hand.
The system is also designed to allow all sensors to be attached to the ADVANCE control unit so that gauges and displays can be mounted separately without the need for multiple tubing or wiring to each gauge.
- *ADVANCE System (from 2009) and Defi-Link System (from 1998) are not compatible. Control unit and sensor wires for Defi-Link System cannot be used for ADVANCE System except some common sensors and extension wires.
- *To operate ADVANCE gauges and displays, ADVANCE Control Unit is necessary.
Wiring diagram
- ※One Control Unit can control up to 7 ADVANCE gauges & displays in all. (except DSDF)
- ※All the gauges(&displays) can be connected to both Meter Output connectors.
- ※Different color gauges can be connected.
- ※The same variety of gauges cannot be connected. (Ex. Two turbo gauges cannot be connected.)
- ※More than 2 Displays(ZDs) can be connected.
- ※Gauges(& displays) can be connected in any order.
- ※Smart Adapter and DSDF need to be connected to the end of the meter line because they have only one connector for meter wire.

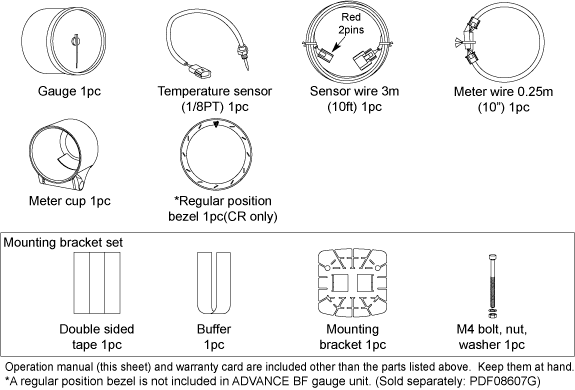

Components
