AEM 100 PSIg or 0 to 7 Bar Brass Sensor Kit.

Q: What is included in the 100 PSIG Brass Sensor Kit?

The 100 PSIG Brass Sensor Kit includes a Brass Sensor Body with 1/8" NPT Male Thread, 100 PSIG Brass Sensor, connector, and pins.

1/8" NPT Male Thread. Kit Includes: Brass Sensor, Connector & Pins

Rating:

100% of 100

1 Review Add Your Review

In stock

Barcode

840879019969

SKU

30-2131-100

99.00€ 79.84€

100 PSIg Brass Sensor Kit. Brass Sensor Body. 1/8" NPT Male Thread. Includes: 100 PSIg Brass Sensor and connector and pins.

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Details

100 PSIG Brass Sensor Kit

100 PSIg Brass Sensor Kit. Brass Sensor Body. 1/8" NPT Male Thread. Includes: 100 PSIg Brass Sensor and connector and pins.

Sensor Performance Specifications:

Accuracy: +/- 3% Full Scale over -40C to 105C includes Repeatability, Hysteresis and Linearity
Operating Temp: -20C to 105C / -4F to 221F
Burst Pressure: 200PSI
Response Time: < 1mS
Wetted Materials: 304L & 316L Stainless Steel
Vibration: 100 to 2000Hz, 20g Sinusoidal, 3 Axes
Weight: <85g
Supply Current: <6mA at 5 Vdc

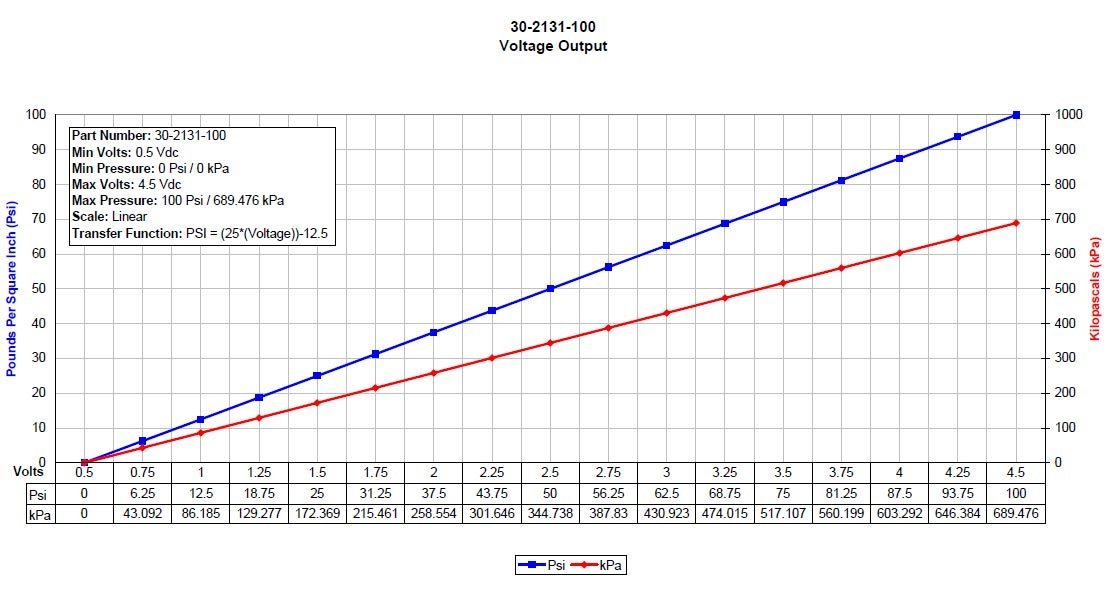

Output: .5 to 4.5Vdc Linear
Transfer Function: PSI = (25*(Voltage))-12.5
Elec. Termination: Integral weatherproof connector, includes mating connector with 12" leads, 1 Red (Supply Voltage 5Vdc +/- .5), 1 Black (Ground), 1 Green (Output)

Manual

Download

Reviews 1

Write Your Own Review

FAQ(2)

Customer Questions

What is included in the 100 PSIG Brass Sensor Kit?

The 100 PSIG Brass Sensor Kit includes a Brass Sensor Body with 1/8" NPT Male Thread, 100 PSIG Brass Sensor, connector, and pins.

What are the performance specifications of the sensor?

The performance specifications of the sensor are as follows: Accuracy: +/- 3% Full Scale over -40C to 105C, Operating Temp: -20C to 105C / -4F to 221F, Burst Pressure: 200PSI, Response Time: < 1mS, Wetted Materials: 304L & 316L Stainless Steel, Vibration: 100 to 2000Hz, 20g Sinusoidal, 3 Axes, Weight:
