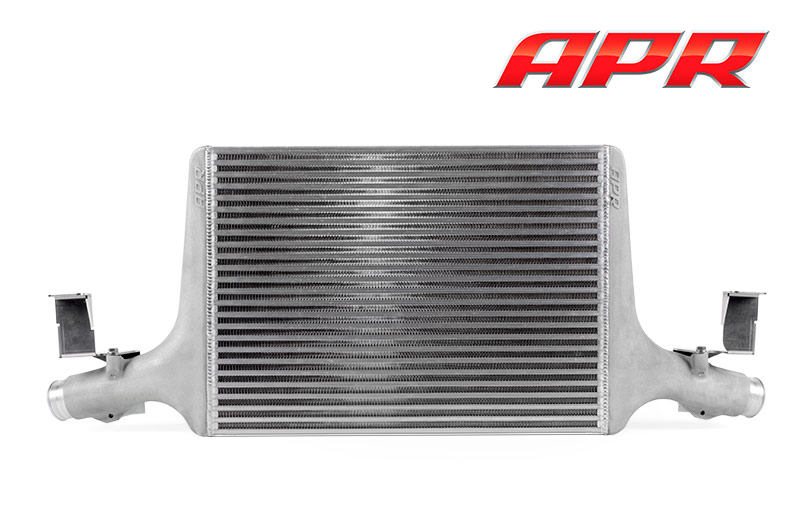

APR Intercooler System for Audi B8/B8.5 A4/A5 1.8T/2.0T
Das APR -Ladeluftkühlersystem ist ein massives Front -Mount -Upgrade, das die Ansaugtemperatur (IAT) dramatisch reduziert, das Wärme einweichen und die Leistung erhöht! Das System ist einfach zu installieren, direktes Bolzen-On-Design, das in jeder Leistungsphase empfohlen wird.
Funktionen:
- Dramatisch senkt Ansauglufttemperatur (IAT)
Erhöht die Leistung, während die Leistungseinbuße durch Hitze minimiert wird!
17 PS Gewinn gegenüber dem Werkssystem! - Massive frontale Oberfläche und Kernvolumen
2,50" x 5,50" x 26,00" - 143,00 in² frnt. & 357,5 in³ Volumen - OEM
2,25" x 16,2" x 22,00" - 356,4 in² frnt. & 801,9 in³ Volumen - APR - Hochwirksames Kern-Design
Bar- und Plattenkern mit versetzten und gelochten Flossen.
Rigorose Tests haben den Kernstil, die Flossen-Dichte und die Größe bestimmt.
Geringer Druckabfall + hochwirksame Kühlung = hohe Leistung! - Glatte Guss-Endtanks
Konstruiert für geringe Turbulenzen/Einschränkungen und maximalen Durchfluss.
Organisch geformt, um den Luftstrom über den gesamten Kern zu fördern.
Druck getestet, um leistungsraubende Ladedruckverluste zu verhindern. - Einfach zu installieren
With the bumper removed, install takes minutes!
Kein Trimmen oder Bohren erforderlich!
Vollständige Anweisungen und weltweit renommierter Kundensupport von APR enthalten. - Entworfen von Ingenieuren mit Lasern
Mit der besten Ausrüstung und den klügsten Ingenieuren funktioniert es einfach!
Design
Leider erscheinen vielen ungeschulten Augen viele Ladeluftkühler-Designs gleich. Die Effektivität des Systems und die Gesamtleistung werden jedoch von mehreren wichtigen Kennzahlen stark beeinflusst. Die Auswahl der Legierung, das Design der Endtanks, der Konstruktionstyp, der Lamellenstil, die Lamellendichte und die Gesamtabmessungen des Kerns müssen analysiert und entsprechend ausbalanciert werden, um eine erstklassige Leistung zu liefern. Während das Ziel des OEMs darin besteht, ein leichtes, einfach herzustellendes und kostengünstiges, plattformübergreifendes Design zu schaffen, das die Werkseinstellungen unterstützen kann,APRs Ladeluftkühler muss in der Lage sein, mehr als die doppelte Werkleistung zu unterstützen.Das Erreichen dieses Ziels erforderte einen mehrstufigen Ansatz, der sich auf die Auswahl des Ladeluftkühlerkerns, das Design der Endtanks und den Einbauort konzentrierte.
Intercooler Core Design
The APR Intercooler core is a large bar-and-plate design featuring densely packed staggered and louvered fins. This design offers exceptional cooling while balancing pressure loss across the core, and maintaining critical airflow to the components behind the intercooler system. The core size was appropriately matched to the platform, minimizing pressure drop while leaving adequate space for appropriately designed end tanks. To APR’s mechanical engineering experts, the design represented the ultimate in performance, far exceeding the capabilities of the factory intercooler. To the driver, the result is simple: Repeatable performance, even in the most demanding of situations!
Core Style / Internal Fin Structure:
APR’s Engineers paid close attention to the balance between core effectiveness and pressure drop through the core, core style and fin density. With fin density too low, pressure drop decreases dramatically, but typically results in a core incapable of effectively cooling. Likewise, with fin density too great, pressure drop increases dramatically, resulting in the turbocharger working harder, and hotter, to produce the same level of airflow. By fine tuning this often unseen balancing act, as illustrated below, APR’s Engineers were able to maximize performance.

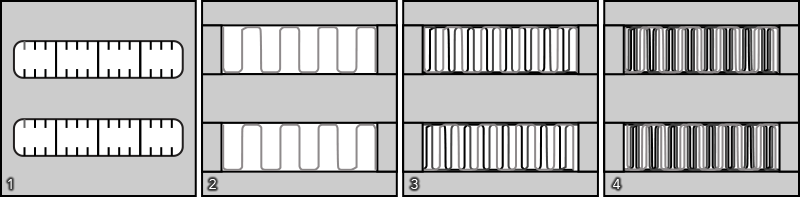

Internal Fin Structure
| Number | Type | Fin Type | Fin Density |
Pressure Drop |
Cooling Effectiveness |
Manufacturing Cost |
Comments | Recommended |
|---|---|---|---|---|---|---|---|---|
| 1 | Tube and Fin | Straight Channel | Low | Low | Low | $ | Poor Cooling | Not Recommended |
| 2 | Bar-and-Plate | Straight Channel | Low | Low | Low | $$ | Poor Cooling | Not Recommended |
| 3 | Quality Bar-and-Plate | Staggered/Offset | High | Low | High | $$$ | Excellent Cooling | Recommended! |
| 4 | Overly Dense Bar-and-Plate | Staggered/Offset | High | High | High | $$$ | High pressure drop | Not Recommended |
Core Size:
APR’s Engineers also paid close attention to the balancing act between core effectiveness, pressure drop and space for end tanks through core sizing. With the core too small, pressure drop decreases dramatically, but typically results in a core incapable of effectively cooling. Likewise, with core size too great, pressure drop can increase, resulting in the turbocharger working harder. However, more importantly, with no space for appropriate end tanks, utilization of the core and overall effectiveness of the system diminishes rapidly, negating the benefit of the larger core. APR’s engineers were able to balance each of these characteristics to deliver maximum performance.
| System | Core Type | Thickness | Width | Height | Volume | Frontal Area |
|---|---|---|---|---|---|---|
| OEM | Tube and Fin | 2.5" | 26" | 5.5" | 357.5 in³ | 143.0 in² |
| APR | Bar and Plate | 2.25" | 22" | 16.2" | 801.9 in³ | 356.45 in² |
The APR system increases frontal surface area by 140.26% and has a 124.31% larger core!

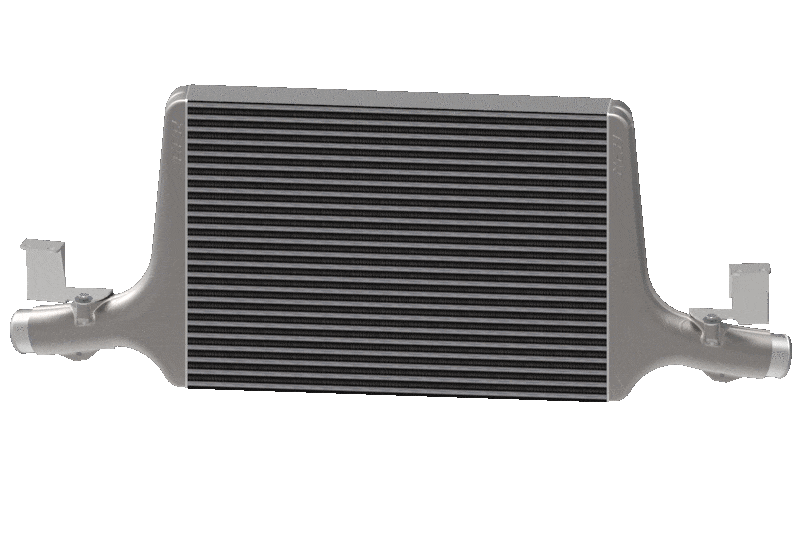

Intercooler End Tank Design

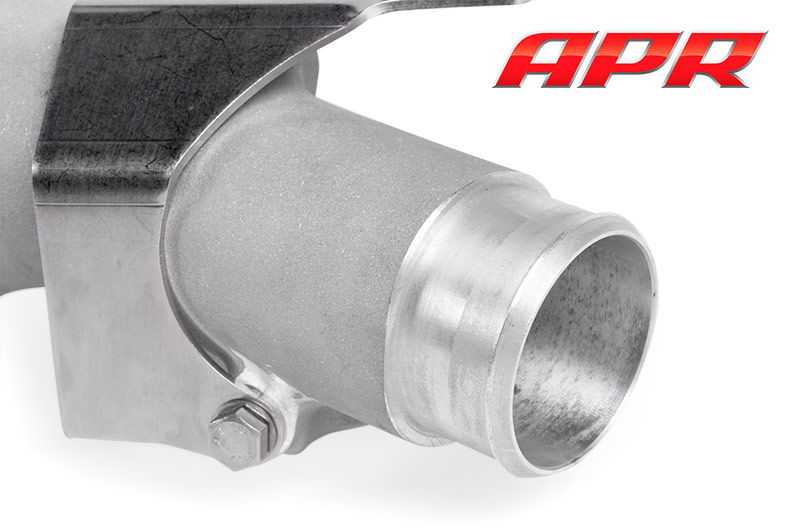

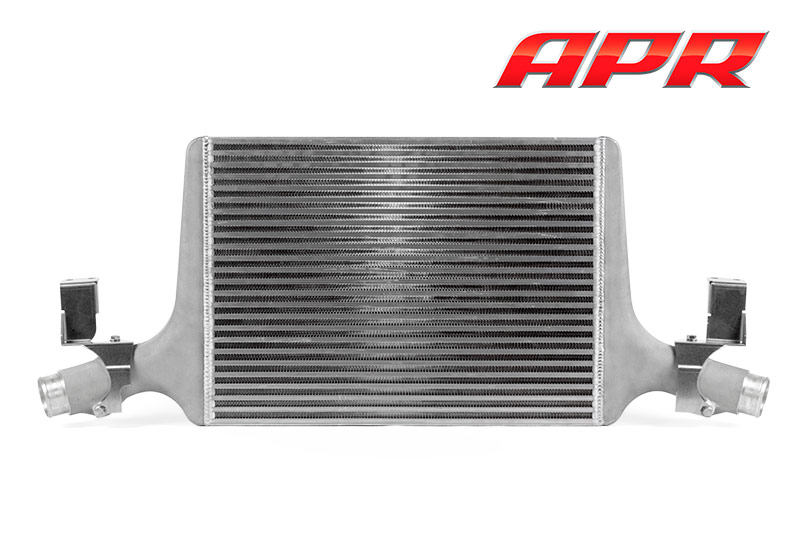

To fully utilize the massive core, APR’s mechanical engineers designed cast aluminum end tanks organically shaped for proper airflow distribution across the entire core. By correctly sizing the intercooler core, end tank design was not sacrificed. The one-piece end tanks are CNC machined to provide a slip resistant mounting surface for hoses, precise integrated mounting surfaces, and perfectly flat connecting surfaces used for TIG welding the tanks to the core. Through proper alignment in welding jigs, each unit is assembled to tight tolerances for a precise and accurate fit.

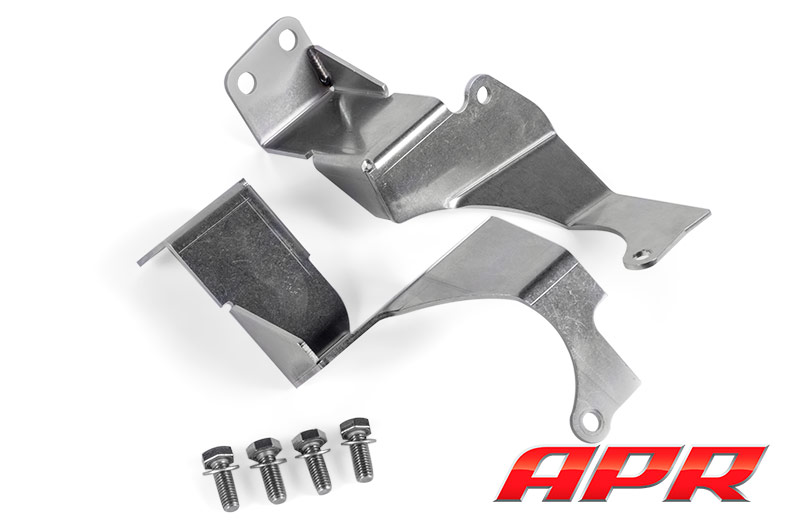

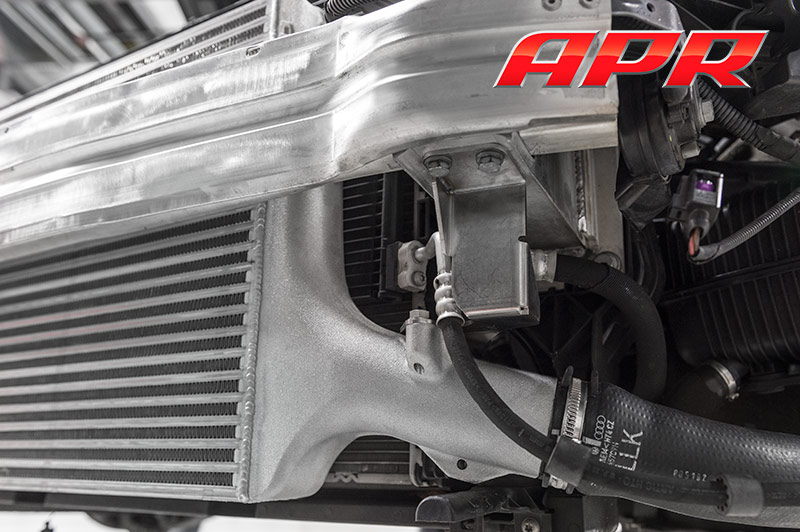

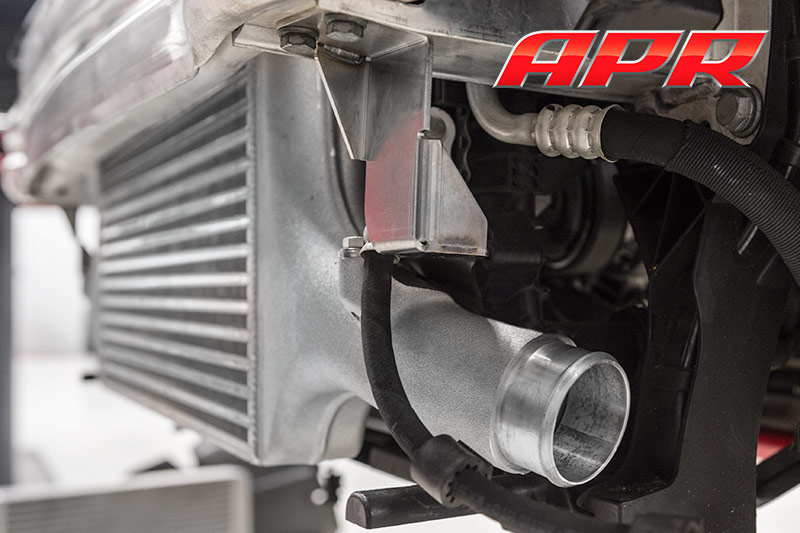

Intercooler Bracket Design

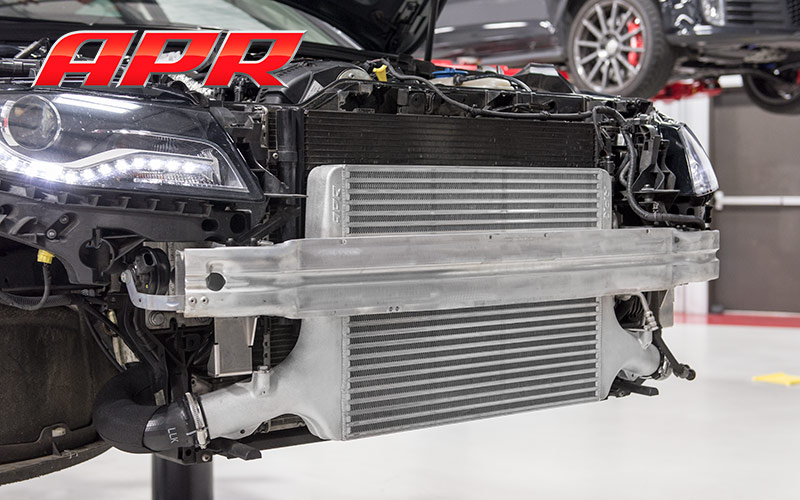

APR’s mechanical engineers designed CNC-bent and TIG-welded mounting brackets to securely hold the intercooler in place. The brackets make the install extremely easy. With the bumper and factory intercooler unit removed, the APR intercooler installs in minutes without any cutting, drilling or trimming. For the DIY customer, this makes a home install simple, and for everyone else it eliminates hidden costs that often come with a more labor intensive install.
