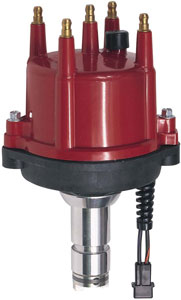

MSD VW Billet Distributor

High-Quality VW Billet Distributor for Improved Ignition Performance

In stock

Barcode

085132084852

SKU

8485

550.99€ 444.35€

Using technology gained from building distributors for off-road and NASCAR racers, MSD offers this Billet Distributor for the popular Type 1 engine. A maintenance-free magnetic pickup is responsible for triggering the MSD Ignition. This pickup is accurate to within 1° at any rpm so you won’t have to worry about points float or “burbles” at top end speeds. The pickup is triggered by a precision reluctor that is attached to a hardened steel shaft. For increased stability, a sealed ball bearing is used to guide the shaft. Since every engine application is different, the MSD Billet distributor features an easy-toadjust mechanical advance assembly. By simply changing the advance springs and stop bushing you can tune in 24 different advance curves.

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Details

Features

Designed as a performance upgrade for VW Type I air cooled engines
Maintenance-free magnetic pickup and precision reluctor create stable trigger signals throughout the rpm range
Easy-to-adjust mechanical advance with supplied springs and stop bushings
CNC machined billet aluminum housing and Dupont Rynite base
Polished steel shaft is QPQ coated and guided by a sealed ball bearing
Advance plate and weights are fine blanked from chrome moly steel and QPQ coated for friction reduction
Mechanical advance assembly can be locked out for crank trigger systems
Advance weight pins are staked and tig welded to the plate• Nylon pads ensure smooth operation of the advance weights
Must be used with an MSD Ignition Control
Supplied with bolt down distributor cap and rotor
No CARB Exemption Order Number

Manual

Reviews

Write Your Own Review

FAQ(6)

Customer Questions

What engines is the VW distributor designed for?

The VW distributor is designed as a performance upgrade for VW Type I air cooled engines.

Is the VW distributor maintenance-free?

Yes, it features a maintenance-free magnetic pickup and precision reluctor that create stable trigger signals throughout the rpm range.

Can the mechanical advance be adjusted?

Yes, the distributor has an easy-to-adjust mechanical advance with supplied springs and stop bushings.

What materials are used in the construction of the VW distributor?

The distributor features a CNC machined billet aluminum housing, Dupont Rynite base, and a polished steel shaft that is QPQ coated and guided by a sealed ball bearing.

Can the mechanical advance assembly be locked out?

Yes, the mechanical advance assembly can be locked out for crank trigger systems.

What additional components are required for using the VW distributor?

The VW distributor must be used with an MSD Ignition Control. It is supplied with a bolt-down distributor cap and rotor.
