MSD Chevy V8 Pro-Billet Distributor Cap-A-Dapts compatible

Upgrade Your Chevy V8 Engine with a High-Quality Pro Billet Distributor Cap for Optimal Performance

In stock

Barcode

085132855513

SKU

85551

470.00€ 379.03€

This is our most popular performance distributor! The housing is machined from a billet of 6061-T6 aluminum on a state-of-the-art CNC machine producing exact tolerances. For high rpm stability, a .500" steel shaft is supported by a sealed ball bearing and a long sintered bushing. This shaft also receives a QPQ coating for friction reduction and resistance to corrosion. A precision machined reluctor is attached to the shaft which triggers the magnetic pick-up mounted in the housing. This high output magnetic pick-up is the most accurate way to trigger your ignition. Plus, with no moving parts to wear or adjust, the pick-up is maintenancefree! Just above the pick-up is MSD's adjustable mechanical advance assembly. Different springs and stop bushings are supplied so you can tune an advance curve to match your application.

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Details

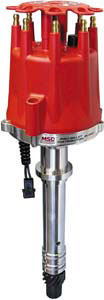

Chevy V8 Pro-Billet Distributor

Features

CNC machined billet aluminum housing and billet aluminum base
Easy-to-adjust mechanical advance with supplied springs and stop bushings
Maintenance-free magnetic pickup and precision reluctor create stable trigger signals throughout the rpm range
Polished steel shaft is QPQ coated and guided by a sealed ball bearing and extra long sintered bushing
Advance plate and weights are fine blanked from chrome moly steel and QPQ coated for friction reduction
Mechanical advance assembly can be locked out for crank trigger systems
Advance weight pins are staked and tig welded to the plate
Nylon pads ensure smooth operation of the advance weights
Special oil tract improves lubrication to the distributor and cam gear
O-ring seals can be added to modified blocks to improve oil pressure control
Supplied with an HEI style distributor cap and rotor (accepts Cap-A-Dapts)
Must be used with an MSD Ignition Control
Will not accept a vacuum advance canister
No CARB Exemption Order Number
