AEM Series 2 Plug and Play EMS Subaru Impreza WRX STi (05-06)

Complete engine control system - plugs into the factory harness

Be the first to review this product

Out of stock

Barcode

840879021658

SKU

30-6821

1,842.03€ 1,485.51€

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Details

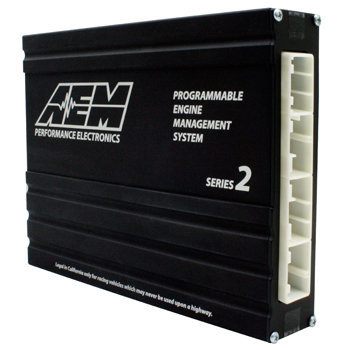

Series 2 Plug and Play EMS

Series 2 Plug & Play Engine Management System for Subaru WRX STi 2005-2006

AEM's Series 2 EMS is a complete engine control system that plugs into the factory harness and uses the factory sensors. This means you do not need to replace any parts of the harness or sensors, just plug the EMS into the harness and begin tuning! The Series 2 EMS for the Subaru WRX allows you to control every aspect of your EJ25 from cam control to rev limit, timing, bigger injectors, boost control, nitrous injection, and individual cylinder fuel and timing trims. For drag racers there's even anti-lag! Professional tuners will appreciate the ease of use and security features on AEMTuner, the interface software for all Series 2 EMS systems.

Outputs
Injector Outputs	8 Saturated
Coil Outputs	6
Selectable direct drive or 0-5V Coil Output	Yes
General purpose LS outputs	12
General purpose HS outputs	4
Individual cylinder ignition trims	Yes
Individual cylinder fuel trims	Yes
Drive-By-Wire Control	Yes
Inputs
Trigger inputs (Ref/Sync)	4
Analog voltage inputs	23
Configurable Analog/RTD/Thermister inputs	4
Switch inputs	5
Lambda inputs	2x
Knock sensors	2
User adjustable knock sensor center frequency	Yes
Communication
USB comms	Yes
RS232 comms	Yes
Communication cables included	Yes
Fully enabled editing/logging software included	Yes
CAN bus equipped	Yes
RS232 datastream output	19 ch
CAN datastream output	19 ch
Communicates with AIM Dash/Dataloggers	Yes
Communicates with Racepak Dash/Dataloggers	Yes
DATA Acquisition
Internal data logging	1 MB
Maximum internal logging rate (per channel)	250 Hz
PC logging	Yes
Data analysis using AEMLog	Yes
Functions and Features
All channels/maps/tuning options unlocked	Yes
Boost control	Yes
Groundspeed based boost target	Yes
Nitrous injection	Yes
Staged injection	Yes
Ground speed limiting	Yes
Rate of Acceleration Control	Yes
Overrun boost enhancement (anti-lag)	Yes
Gear change ignition cut (shift-without-lift)	Yes
Password protected calibrations	Yes
Fuel & Ignition rev limiters	Yes
"In cockpit" global fuel trim capability	Yes
Gear dependent shift light	Yes
Evap/Purge function	Yes
DC Motor control	2 Ch
Software definable "virtual" switch inputs	2
EGT Based fuel trims	Yes
Maximum boost limit	None
Physical Dimensions
Length	192 mm
Width	150 mm
Height	37 mm
Finish	Black Anodized

This product fits the following vehicles:

2005 to 2006 Subaru Impreza WRX STi 2.5L Turbo

Information

Infinity Engine Management Software
InfinityTuner	Version: 2.86	File Size:12.3MB
InfinityTuner Wizards	Version: 2.4	File Size:1.9MB
InfinityTuner Drivers	Version: 2.81	File Size:2.98MB
InfinityTuner Layout	Version: 2.81	File Size:4KB
InfinityTuner Session	Version: 2.81	File Size:44KB
AEMdata	Version:4.00.37	File Size:6.3MB
Series 1,Series 2 & EMS-4 Software
AEMTuner Series 2 EMS & EMS 4	Version: 2.98	File Size:32.4MB
AEMdata	Version: 4.00.37	File Size:6.3MB
F/IC Calibration Software
F/IC - 8	Version: 1.05	File Size:18.9MB
F/IC - 6	Version: 3.04	File Size: 19.1MB
F/IC - 6 Patch	Version: 3.05	File Size: 208KB
F/IC - 4	Version: N/A	File Size: 19.2MB
AQ-1 Data Logger Software
AQ-1 Requires .Net Framework 4 to be installed first	Version: 1.3	File Size: 11.1MB
AQ-1 Firmware update	Version: N/A	File Size: 308KB
.Net Framework 4	Version: N/A	File Size: 869KB
AEMdata	Version:4.00.37	File Size:6.3MB
Wideband Failsafe Config Software
WF Config Software	Version:1.2.8.7	File Size:7.69MB
AEMdata	Version: 4.00.37	File Size:6.3MB
Data Logging & Analysis Software
AEMdata	Version: 4.00.37	File Size:6.3MB
Serial Cauge Config Software
Pro Gauge	Version:N/A	File Size:10.2MB

Manual

Download

Reviews

Write Your Own Review

FAQ(4)

Customer Questions

What vehicles is the Series 2 Plug and Play EMS compatible with?

The Series 2 Plug and Play EMS is compatible with 2005-2006 Subaru Impreza WRX STi 2.5L Turbo.

What are the key features of the Series 2 Plug and Play EMS?

The key features of the Series 2 Plug and Play EMS include complete engine control system, plugs into factory harness, uses factory sensors, control over various engine parameters like cam control, rev limit, timing, injectors, boost control, nitrous injection, individual cylinder fuel and timing trims, anti-lag for drag racers, and compatibility with AEMTuner interface software.

What are the communication options available with the Series 2 Plug and Play EMS?

The Series 2 Plug and Play EMS features USB and RS232 communication, included communication cables, fully enabled editing/logging software, CAN bus equipped, RS232 and CAN datastream output, and compatibility with AIM Dash/Dataloggers and Racepak Dash/Dataloggers.

What are the physical dimensions of the Series 2 Plug and Play EMS?

The Series 2 Plug and Play EMS has the following physical dimensions: Length - 192 mm, Width - 150 mm, Height - 37 mm, and comes in a Black Anodized finish.
