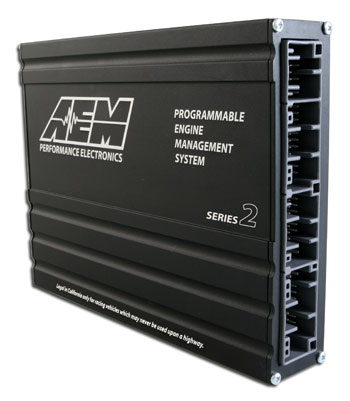

AEM Series 2 Plug and Play EMS for Acura Integra and Honda Accord, Civic, Prelude
Control Rev Limit, timing, injectors, boost, nitrous and more
Out of stock
SKU
30-6060
1,335.69€ 1,077.17€
AEM's Series 2 EMS is a complete engine control system that plugs into the factory harness and uses the factory sensors. This means you do not need to replace any parts of the harness or sensors, just plug the EMS into the harness and begin tuning! The Series 2 EMS allows you to control every aspect of your engine. From VTEC to rev limit, timing, adding different sized injectors, boost control, nitrous injection, even anti-lag and individual cylinder fuel and timing trims, the Series 2 EMS gives you total control from an easy to use interface.
Series 2 Plug and Play EMS
Series 2 Plug & Play Engine Management System
AEM's Series 2 EMS is a complete engine control system that plugs into the factory harness and uses the factory sensors. This means you do not need to replace any parts of the harness or sensors, just plug the EMS into the harness and begin tuning! The Series 2 EMS allows you to control every aspect of your engine. From VTEC to rev limit, timing, adding different sized injectors, boost control, nitrous injection, even anti-lag and individual cylinder fuel and timing trims, the Series 2 EMS gives you total control from an easy to use interface.
| Outputs | |
| Injector Outputs | 12 Saturated |
| Coil Outputs | 4 |
| Selectable direct drive or 0-5V Coil Output | Yes |
| Direct plug in, no jumper harness required | Yes |
| General purpose LS outputs | 12 |
| General purpose HS outputs | 4 |
| Individual cylinder ignition trims | Yes |
| Individual cylinder fuel trims | Yes |
| Inputs | |
| Trigger inputs (Ref/Sync) | 4 |
| Analog voltage inputs | 23 |
| Configurable Analog/RTD/Thermister inputs | 4 |
| Switch inputs | 5 |
| Lambda inputs | 2x |
| Knock sensors | 2 |
| User adjustable knock sensor center frequency | Yes |
| Communication | |
| USB comms | Yes |
| RS232 comms | Yes |
| Communication cables included | Yes |
| Fully enabled editing/logging software included | Yes |
| CAN bus equipped | Yes |
| RS232 datastream output | 19 ch |
| CAN datastream output | 19 ch |
| Communicates with AIM Dash/Dataloggers | Yes |
| Communicates with Racepak Dash/Dataloggers | Yes |
| DATA Acquisition | |
| Internal data logging | 1 MB |
| Maximum internal logging rate (per channel) | 250 Hz |
| PC logging | Yes |
| Data analysis using AEMLog | Yes |
| Functions and Features | |
| All channels/maps/tuning options unlocked | Yes |
| Boost control | Yes |
| Groundspeed based boost target | Yes |
| Staged injection | Yes |
| Ground speed limiting | Yes |
| Rate of Acceleration Control | Yes |
| Overrun boost enhancement (anti-lag) | Yes |
| Gear change ignition cut (shift-without-lift) | Yes |
| Password protected calibrations | Yes |
| Fuel & Ignition rev limiters | Yes |
| "In cockpit" global fuel trim capability | Yes |
| Gear dependent shift light | Yes |
| Evap/Purge function | Yes |
| DC Motor control | 2 Ch |
| Software definable "virtual" switch inputs | 2 |
| EGT Based fuel trims | Yes |
| Maximum boost limit | None |
| Physical Dimensions | |
| Length | 192 mm |
| Width | 150 mm |
| Height | 37 mm |
| Finish | Black Anodized |
This product fits the following vehicles:
- 1997 to 1997 Acura CL 2.2L 4 Cyl
- 1996 to 1999 Acura Integra GSR 1.8L
- 1996 to 1999 Acura Integra RS, LS, GS 1.8L
- 1996 to 1999 Acura Integra GSR 1.8L
- 1996 to 1997 Honda Accord DX, LX, SE, EX 2.2L 4 Cyl
- 1996 to 1998 Honda Civic CX, DX, LX 1.6L
- 1996 to 1998 Honda Civic EX 1.6L VTEC
- 1996 to 1997 Honda del Sol Si 1.6L SOHC VTEC
- 1996 to 1997 Honda del Sol VTEC 1.6L DOHC VTEC
- 1996 to 1997 Honda del Sol 1.6L SOHC VTEC
- 1997 to 2000 Honda Prelude H22
- 1996 to 1996 Honda Prelude H22
- 1996 to 1996 Honda Prelude H23
- 1996 to 2000 Honda Prelude H22
Infinity Engine Management Software |
||
| InfinityTuner | Version: 2.86 | File Size:12.3MB |
| InfinityTuner Wizards | Version: 2.4 | File Size:1.9MB |
| InfinityTuner Drivers | Version: 2.81 | File Size:2.98MB |
| InfinityTuner Layout | Version: 2.81 | File Size:4KB |
| InfinityTuner Session | Version: 2.81 | File Size:44KB |
| AEMdata | Version:4.00.37 | File Size:6.3MB |
Series 1,Series 2 & EMS-4 Software |
||
| AEMTuner Series 2 EMS & EMS 4 | Version: 2.98 | File Size:32.4MB |
| AEMdata | Version: 4.00.37 | File Size:6.3MB |
F/IC Calibration Software |
||
| F/IC - 8 | Version: 1.05 | File Size:18.9MB |
| F/IC - 6 | Version: 3.04 | File Size: 19.1MB |
| F/IC - 6 Patch | Version: 3.05 | File Size: 208KB |
| F/IC - 4 | Version: N/A | File Size: 19.2MB |
AQ-1 Data Logger Software |
||
| Version: 1.3 | File Size: 11.1MB | |
| AQ-1 Firmware update | Version: N/A | File Size: 308KB |
| .Net Framework 4 | Version: N/A | File Size: 869KB |
| AEMdata | Version:4.00.37 | File Size:6.3MB |
Wideband Failsafe Config Software |
||
| WF Config Software | Version:1.2.8.7 | File Size:7.69MB |
| AEMdata | Version: 4.00.37 | File Size:6.3MB |
Data Logging & Analysis Software |
||
| AEMdata | Version: 4.00.37 | File Size:6.3MB |
Serial Cauge Config Software |
||
| Pro Gauge | Version:N/A | File Size:10.2MB |
