GReddy Surge tank for RB26

Share
Emphasizes the balance between high power and mid-range torque
In stock
Barcode
4991995663768
SKU
13522307
$1,770.00 $1,427.42
The wall thickness of the tank is 3 mm, and by further setting a press line, it corresponds to rigidity up, high boost. As a countermeasure against cracking due to expansion and vibration, the tank is fitted in the base plate, and the weld area is increased by applying a grooving process to the base plate. In addition, it has been subjected to alumite treatment that is resistant to scratches and rust.
Estimate shipping rates: $ 400.39

 Specs

  • KIT:SURGE TANK/THROTTLE
  • Collector Tank Size 4.1l(VS Normal121%)
  • Intake pipe 90㎜(CNC machining cutting)
  • Pipe Size φ58-45(taper)
  • Throttole Hose Size φ100、butterfly Sizeφ90
  • Standard AAC valve, throttle position sensor installable

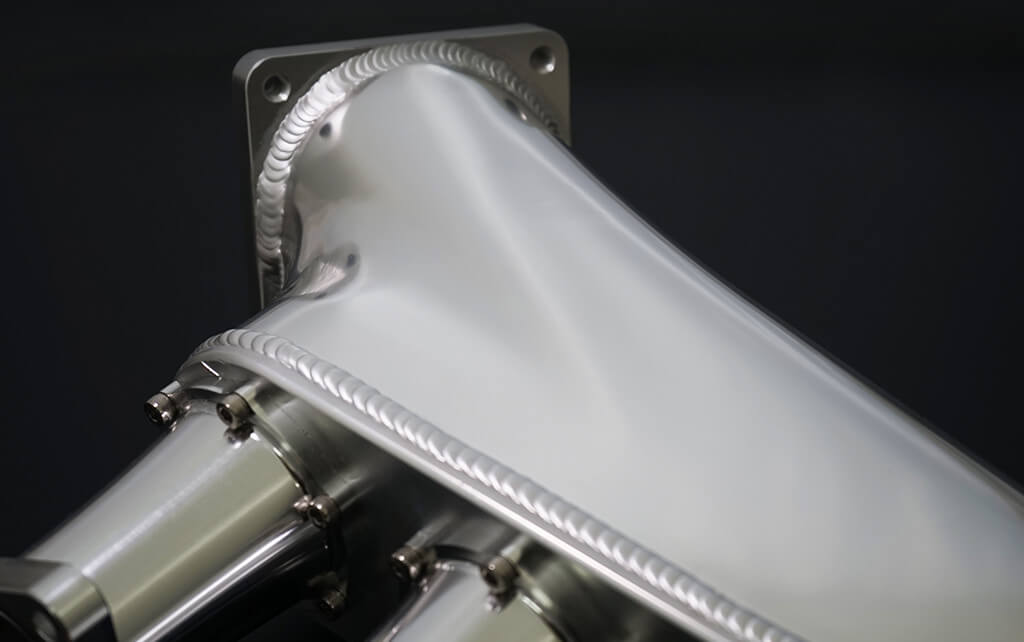

Improvement of rigidity and high boost by providing press line

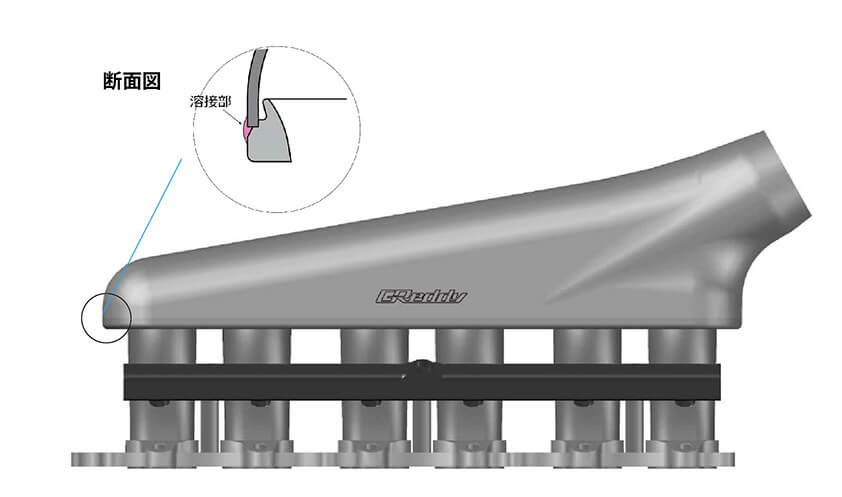

As a countermeasure against cracking due to expansion and vibration, the tank is fitted in the base plate, and the weld area is increased by applying a groove process to the base plate.

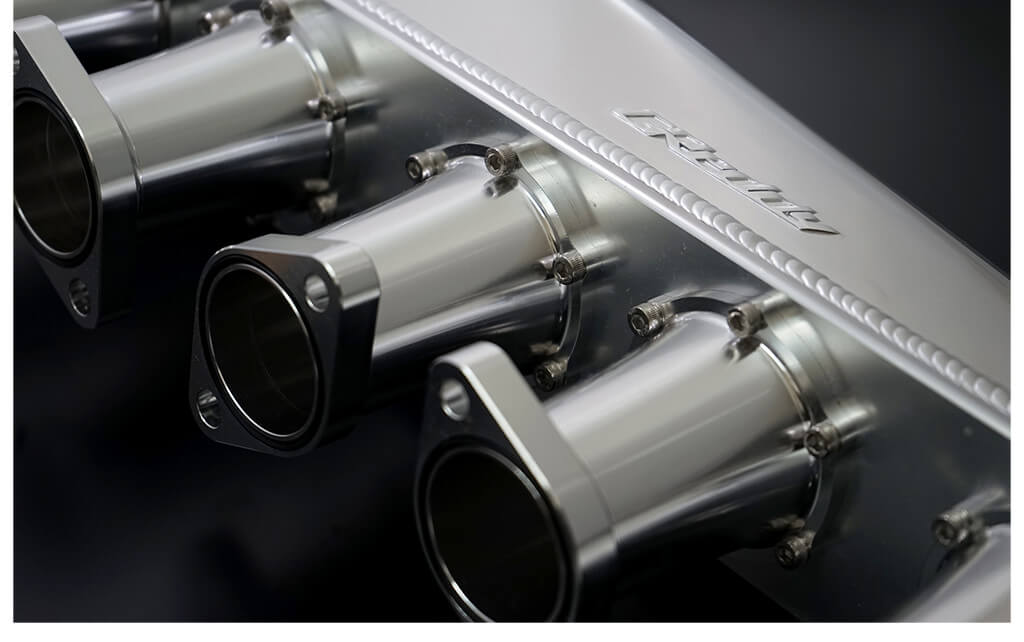

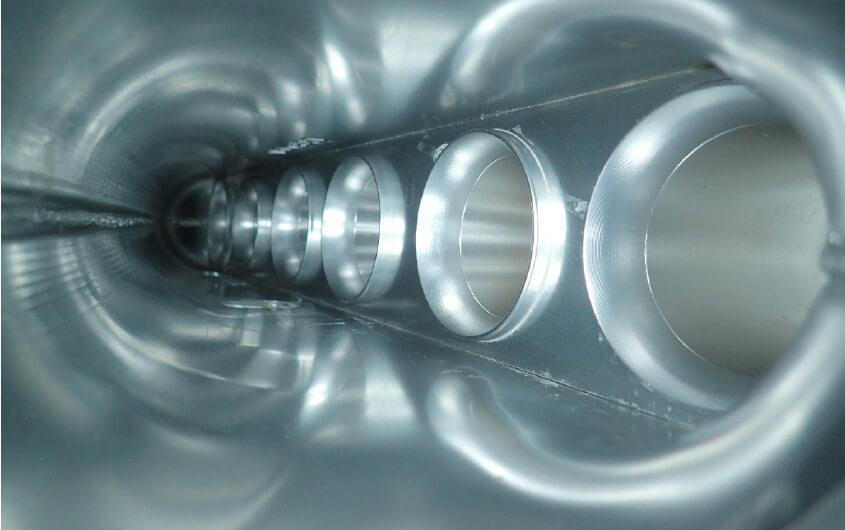

The rectification effect by the funnel and the flow rate increase bring out the suction efficiency to the maximum.

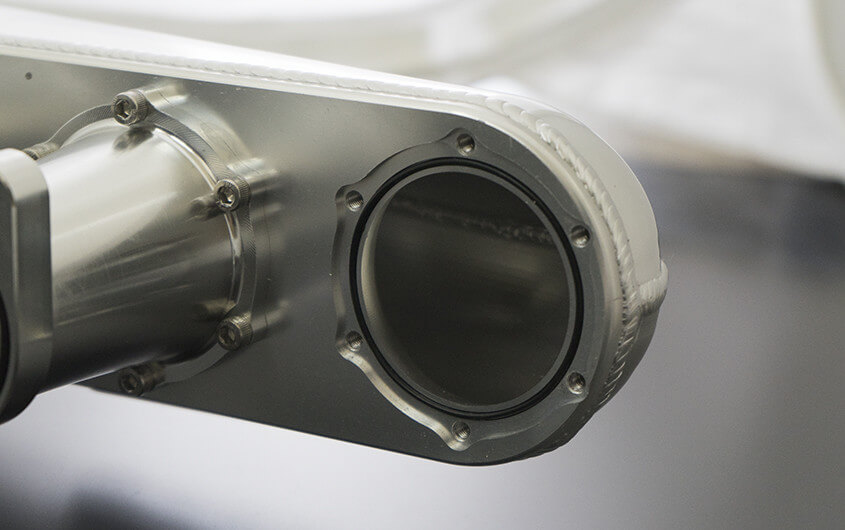

For each part seal, o-ring of exclusive design prevents falling off when assembling, fluorine series superior in gasoline resistance is adopted.

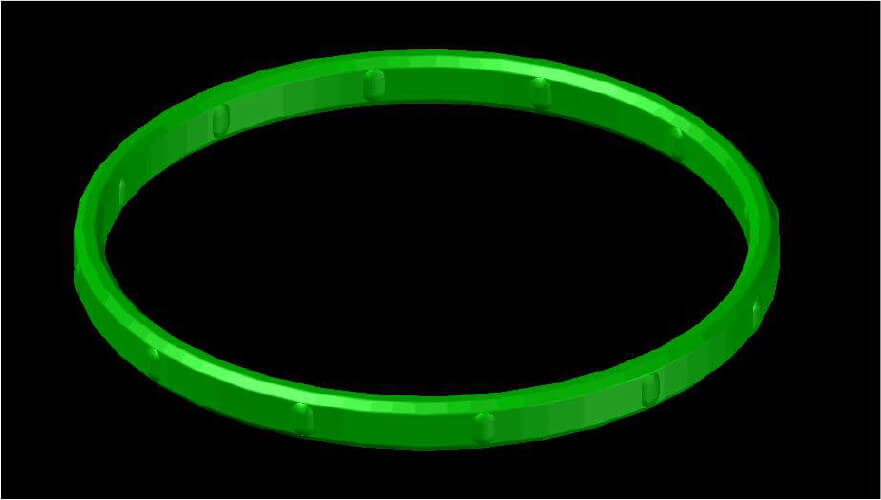

Use exclusive design O-ring

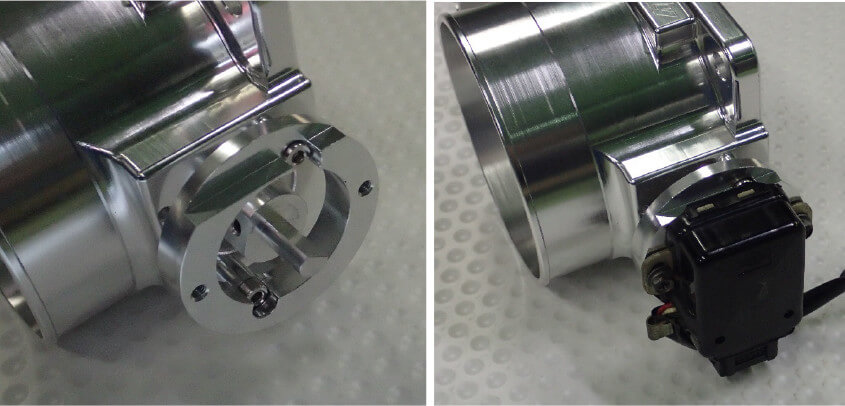

Throttle position sensor can be installed with RB26 genuine parts by bolt on.

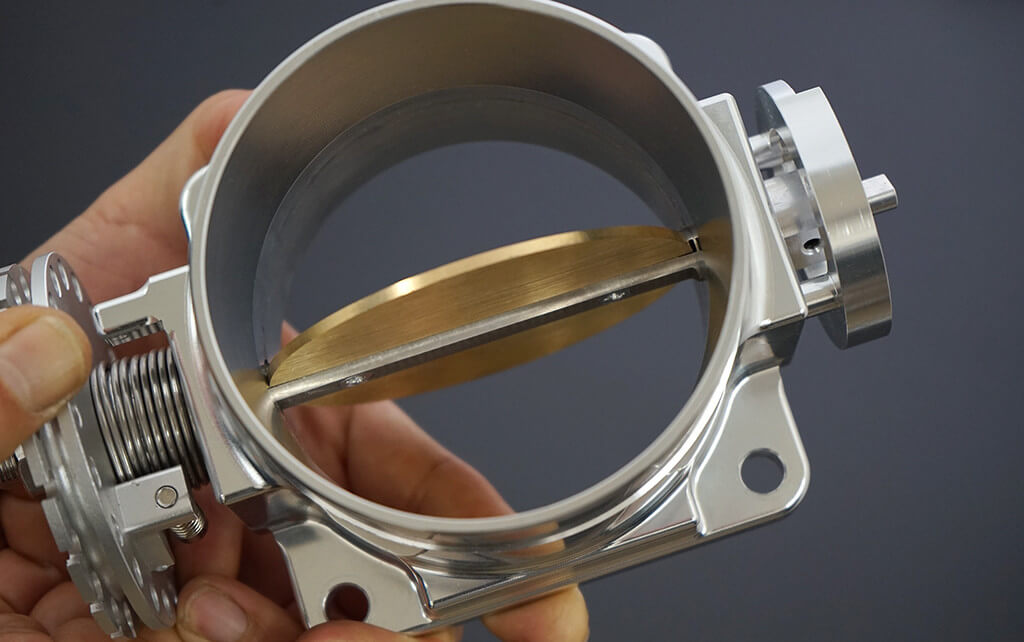

Throttle shaft is a thin shape that reduces suction resistance and increases the opening area.

Standard AAC valve, throttle position sensor installable.
