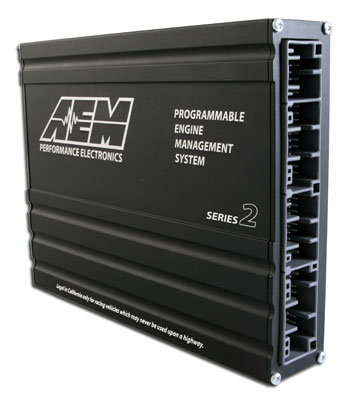

AEM Series 2 Plug and Play EMS for Honda S2000 (06-08)

Complete engine control system - plugs into the factory harness

Rating:

100% of 100

1 Review Add Your Review

Out of stock

Barcode

840879020156

SKU

30-6052

1,939.04€ 1,563.74€

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Details

Series 2 Plug and Play EMS articleProducts description

Series 2 Plug & Play Engine Management System

AEM's Series 2 EMS is a complete engine control system that plugs into the factory harness and uses the factory sensors. This means you do not need to replace any parts of the harness or sensors, just plug the EMS into the harness and begin tuning! The Series 2 EMS for the S2K allows you to control every aspect of your F20. From VTEC to rev limit, timing, bigger injectors, boost control, nitrous injection, individual cylinder fuel and timing trims and for you drag racers there's even anti-lag! The Series 2 for the S2000 even lets you keep the stock coolant temperature gauge. Get total control for your S2000 with the Series 2 from our new tuning software - AEM Tuner.

Outputs
Injector Outputs	12 Saturated
Coil Outputs	4
Selectable direct drive or 0-5V Coil Output	Yes
Direct plug in, no jumper harness required	Yes
General purpose LS outputs	12
General purpose HS outputs	4
Individual cylinder ignition trims	Yes
Individual cylinder fuel trims	Yes
Inputs
Trigger inputs (Ref/Sync)	4
Analog voltage inputs	23
Configurable Analog/RTD/Thermister inputs	4
Switch inputs	5
Lambda inputs	2x
Knock sensors	2
User adjustable knock sensor center frequency	Yes
Communication
USB comms	Yes
RS232 comms	Yes
Communication cables included	Yes
Fully enabled editing/logging software included	Yes
CAN bus equipped	Yes
RS232 datastream output	19 ch
CAN datastream output	19 ch
Communicates with AIM Dash/Dataloggers	Yes
Communicates with Racepak Dash/Dataloggers	Yes
DATA Acquisition
Internal data logging	1 MB
Maximum internal logging rate (per channel)	250 Hz
PC logging	Yes
Data analysis using AEMLog	Yes
Functions and Features
All channels/maps/tuning options unlocked	Yes
Boost control	Yes
Groundspeed based boost target	Yes
Nitrous injection	Yes
Staged injection	Yes
Ground speed limiting	Yes
Rate of Acceleration Control	Yes
Overrun boost enhancement (anti-lag)	Yes
Gear change ignition cut (shift-without-lift)	Yes
Password protected calibrations	Yes
Fuel & Ignition rev limiters	Yes
"In cockpit" global fuel trim capability	Yes
Gear dependent shift light	Yes
Evap/Purge function	Yes
DC Motor control	2 Ch
Software definable "virtual" switch inputs	2
EGT Based fuel trims	Yes
Maximum boost limit	None
Stock S2000 coolant gauge support	Yes
Physical Dimensions
Length	192 mm
Width	150 mm
Height	37 mm
Finish	Black Anodized

This product fits the following vehicles:

2000 to 2003 Honda S2000 2.0L VTEC
2004 to 2005 Honda S2000 2.2L VTEC

Information

Infinity Engine Management Software
InfinityTuner	Version: 2.86	File Size:12.3MB
InfinityTuner Wizards	Version: 2.4	File Size:1.9MB
InfinityTuner Drivers	Version: 2.81	File Size:2.98MB
InfinityTuner Layout	Version: 2.81	File Size:4KB
InfinityTuner Session	Version: 2.81	File Size:44KB
AEMdata	Version:4.00.37	File Size:6.3MB
Series 1,Series 2 & EMS-4 Software
AEMTuner Series 2 EMS & EMS 4	Version: 2.98	File Size:32.4MB
AEMdata	Version: 4.00.37	File Size:6.3MB
F/IC Calibration Software
F/IC - 8	Version: 1.05	File Size:18.9MB
F/IC - 6	Version: 3.04	File Size: 19.1MB
F/IC - 6 Patch	Version: 3.05	File Size: 208KB
F/IC - 4	Version: N/A	File Size: 19.2MB
AQ-1 Data Logger Software
AQ-1 Requires .Net Framework 4 to be installed first	Version: 1.3	File Size: 11.1MB
AQ-1 Firmware update	Version: N/A	File Size: 308KB
.Net Framework 4	Version: N/A	File Size: 869KB
AEMdata	Version:4.00.37	File Size:6.3MB
Wideband Failsafe Config Software
WF Config Software	Version:1.2.8.7	File Size:7.69MB
AEMdata	Version: 4.00.37	File Size:6.3MB
Data Logging & Analysis Software
AEMdata	Version: 4.00.37	File Size:6.3MB
Serial Cauge Config Software
Pro Gauge	Version:N/A	File Size:10.2MB

Manual

Download

Reviews 1

Write Your Own Review

FAQ(4)

Customer Questions

What is the AEM Series 2 EMS?

The AEM Series 2 EMS is a complete engine control system that plugs into the factory harness and uses the factory sensors. It allows you to control every aspect of your F20 engine, from VTEC to rev limit, timing, injectors, boost control, nitrous injection, and more.

What are the outputs of the AEM Series 2 EMS?

The AEM Series 2 EMS features 12 injector outputs, 4 coil outputs, selectable direct drive or 0-5V coil output, general purpose LS outputs, general purpose HS outputs, individual cylinder ignition trims, and individual cylinder fuel trims.

What are the communication options of the AEM Series 2 EMS?

The AEM Series 2 EMS supports USB and RS232 communications, includes communication cables, fully enabled editing/logging software, and is CAN bus equipped. It also has RS232 and CAN datastream output capabilities and can communicate with AIM Dash/Dataloggers and Racepak Dash/Dataloggers.

What are the functions and features of the AEM Series 2 EMS?

The AEM Series 2 EMS offers a wide range of functions and features including boost control, nitrous injection, staged injection, anti-lag, gear change ignition cut, rev limiters, fuel trim capabilities, shift light, evap/purge function, and more.
