AEM Series 2 Plug and Play EMS for Acura RSX and Honda Civic

Control Rev Limit, timing, injectors, boost, nitrous and more

Out of stock

Barcode

840879021467

SKU

30-6030

1,890.53€ 1,524.62€

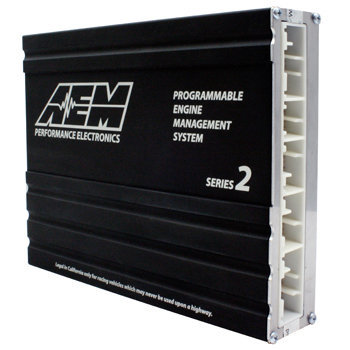

AEM's Series 2 EMS is a complete engine control system that plugs into the factory harness and uses the factory sensors. This means you do not need to replace any parts of the harness or sensors, just plug the EMS into the harness and begin tuning! The Series 2 EMS allows you to control every aspect of your engine. From VTEC to rev limit, timing, adding different sized injectors, boost control, nitrous injection, even anti-lag and individual cylinder fuel and timing trims, the Series 2 EMS gives you total control from an easy to use interface.

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Details

Series 2 Plug and Play EMS

Series 2 Plug & Play Engine Management System

Outputs
Injector Outputs	10 Saturated
Coil Outputs	4
Selectable direct drive or 0-5V Coil Output	Yes
Direct plug in, no jumper harness required	Yes
General purpose LS outputs	11
General purpose HS outputs	4
Individual cylinder ignition trims	Yes
Individual cylinder fuel trims	Yes
Inputs
Trigger inputs (Ref/Sync)	4
Analog voltage inputs	14
Configurable Analog/RTD/Thermister inputs	4
Switch inputs	5
Lambda inputs	2x
Knock sensors	2
User adjustable knock sensor center frequency	Yes
Communication
USB comms	Yes
RS232 comms	Yes
Communication cables included	Yes
Fully enabled editing/logging software included	Yes
CAN bus equipped	Yes
RS232 datastream output	19 ch
CAN datastream output	32 ch
Communicates with AIM Dash/Dataloggers	Yes
Communicates with Racepak Dash/Dataloggers	Yes
DATA Acquisition
Internal data logging	1 MB
Maximum internal logging rate (per channel)	250 Hz
PC logging	Yes
Data analysis using AEMLog	Yes
Functions and Features
All channels/maps/tuning options unlocked	Yes
Boost control	Yes
Groundspeed based boost target	Yes
Staged injection	Yes
Ground speed limiting	Yes
Rate of Acceleration Control	Yes
Overrun boost enhancement (anti-lag)	Yes
Gear change ignition cut (shift-without-lift)	Yes
Password protected calibrations	Yes
Fuel & Ignition rev limiters	Yes
"In cockpit" global fuel trim capability	Yes
Gear dependent shift light	Yes
Evap/Purge function	Yes
DC Motor control	2 Ch
Software definable "virtual" switch inputs	2
EGT Based fuel trims	Yes
Maximum boost limit	None
Physical Dimensions
Length	192 mm
With	150 mm
Height	37 mm
Finish	Black Anodized

This product fits the following vehicles:

• 2002 to 2004 Acura RSX 2.0L VTEC

• 2002 to 2004 Acura RSX Type S 2.0L VTEC

• 1992 to 1995 Honda Civic w/K20A2 Swap 2.0L VTEC

• 2001 to 2005 Honda Civic DX, LX 1.7L

• 2001 to 2005 Honda Civic EX 1.7L VTEC

• 2002 to 2005 Honda Civic Si 2.0L VTEC

• 1996 to 2000 Honda Civic w/K20A2 Swap 2.0L VTEC

Information

Infinity Engine Management Software
InfinityTuner	Version: 2.86	File Size:12.3MB
InfinityTuner Wizards	Version: 2.4	File Size:1.9MB
InfinityTuner Drivers	Version: 2.81	File Size:2.98MB
InfinityTuner Layout	Version: 2.81	File Size:4KB
InfinityTuner Session	Version: 2.81	File Size:44KB
AEMdata	Version:4.00.37	File Size:6.3MB
Series 1,Series 2 & EMS-4 Software
AEMTuner Series 2 EMS & EMS 4	Version: 2.98	File Size:32.4MB
AEMdata	Version: 4.00.37	File Size:6.3MB
F/IC Calibration Software
F/IC - 8	Version: 1.05	File Size:18.9MB
F/IC - 6	Version: 3.04	File Size: 19.1MB
F/IC - 6 Patch	Version: 3.05	File Size: 208KB
F/IC - 4	Version: N/A	File Size: 19.2MB
AQ-1 Data Logger Software
AQ-1 Requires .Net Framework 4 to be installed first	Version: 1.3	File Size: 11.1MB
AQ-1 Firmware update	Version: N/A	File Size: 308KB
.Net Framework 4	Version: N/A	File Size: 869KB
AEMdata	Version:4.00.37	File Size:6.3MB
Wideband Failsafe Config Software
WF Config Software	Version:1.2.8.7	File Size:7.69MB
AEMdata	Version: 4.00.37	File Size:6.3MB
Data Logging & Analysis Software
AEMdata	Version: 4.00.37	File Size:6.3MB
Serial Cauge Config Software
Pro Gauge	Version:N/A	File Size:10.2MB

Manual

Download

Reviews

Write Your Own Review

FAQ(5)

Customer Questions

What is the AEM Series 2 EMS?

The AEM Series 2 EMS is a complete engine control system that plugs into the factory harness and uses the factory sensors. It allows you to control every aspect of your engine, from VTEC to rev limit, timing, injectors, boost control, nitrous injection, anti-lag, and more.

What are the output features of the AEM Series 2 EMS?

The AEM Series 2 EMS features 10 injector outputs, 4 coil outputs, selectable direct drive or 0-5V coil output, general purpose LS outputs, general purpose HS outputs, individual cylinder ignition and fuel trims.

What are the input features of the AEM Series 2 EMS?

The AEM Series 2 EMS includes trigger inputs, analog voltage inputs, configurable Analog/RTD/Thermister inputs, switch inputs, lambda inputs, knock sensors, and more.

What communication options are available with the AEM Series 2 EMS?

The AEM Series 2 EMS supports USB and RS232 communications, includes communication cables, fully enabled editing/logging software, CAN bus equipped, and datastream output options.

What are the functions and features of the AEM Series 2 EMS?

The AEM Series 2 EMS offers various functions and features including boost control, staged injection, anti-lag, gear change ignition cut, rev limiters, fuel trim capability, and
