AEM 50 PSIa or -1 to 2.5 Bar Brass Sensor Kit

Q: What is included in the 3.5 Bar / 50 PSIa Brass Sensor Kit?

The kit includes a Brass Sensor Body with 1/8" NPT Male Thread, and a 3.5 BAR / 50 PSIa MAP Brass Sensor connector with pins.

Q: What are the Sensor Performance Specifications?

The sensor has an accuracy of +/- 3% Full Scale over -40C to 105C, operating temperature of -20C to 105C, burst pressure of 100PSI, response time of < 1mS, and output of .5 to 4.5Vdc Linear, among other specifications.

Q: What is the difference between Brass Pressure Sensor and Stainless Pressure Sensor?

A Brass Pressure Sensor is like a ruler, providing a good reference to pressure readings. On the other hand, a Stainless Pressure Sensor is like a caliper, offering exact details of pressure for calibration purposes.

Q: Which Pressure Sensor should I use for my application?

Use a Brass Pressure Sensor for applications where a reference to pressure is needed, such as Boost Gauge readings. Use a Stainless Pressure Sensor for applications requiring precise pressure details, like MAP Sensor information for ECU calibration.

Q: What are the features of the Brass Sensor Kit?

The Brass sensors are accurate to within 3% of full scale, have high-quality sealed sensor housings, and come with connectors and pins included.

Q: Which sensor do I need for an AEM X-Series 2.5 bar boost gauge?

The AEM 50 PSIa (1 to 2.5 bar) sensor kit. It is available in brass (30-2131-50) or stainless (30-2130-50) versions.

1/8" NPT Male Thread. Kit Includes: Brass Sensor, Connector & Pins

Rating:

100% of 100

1 Review Add Your Review

In stock

Barcode

840879019945

SKU

30-2131-50

99.00€ 79.84€

3.5 BAR / 50 PSIa MAP Brass Sensor Kit. Brass Sensor Body. 1/8" NPT Male Thread. Includes: 3.5 BAR / 50 PSIa MAP Brass Sensor and connector and pins.

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Details

3.5 Bar or 50PSIA Brass Sensor Kit

3.5 BAR / 50 PSIa MAP Brass Sensor Kit. Brass Sensor Body. 1/8" NPT Male Thread. Includes: 3.5 BAR / 50 PSIa MAP Brass Sensor connector ans pins.

Sensor Performance Specifications:

Accuracy: +/- 3% Full Scale over -40C to 105C includes Repeatability, Hysteresis and Linearity
Operating Temp: -20C to 105C / -4F to 221F
Burst Pressure: 100PSI
Response Time: < 1mS
Wetted Materials: 304L & 316L Stainless Steel
Vibration: 100 to 2000Hz, 20g Sinusoidal, 3 Axes
Weight: <85g
Supply Current: <6mA at 5 Vdc
Output: .5 to 4.5Vdc Linear

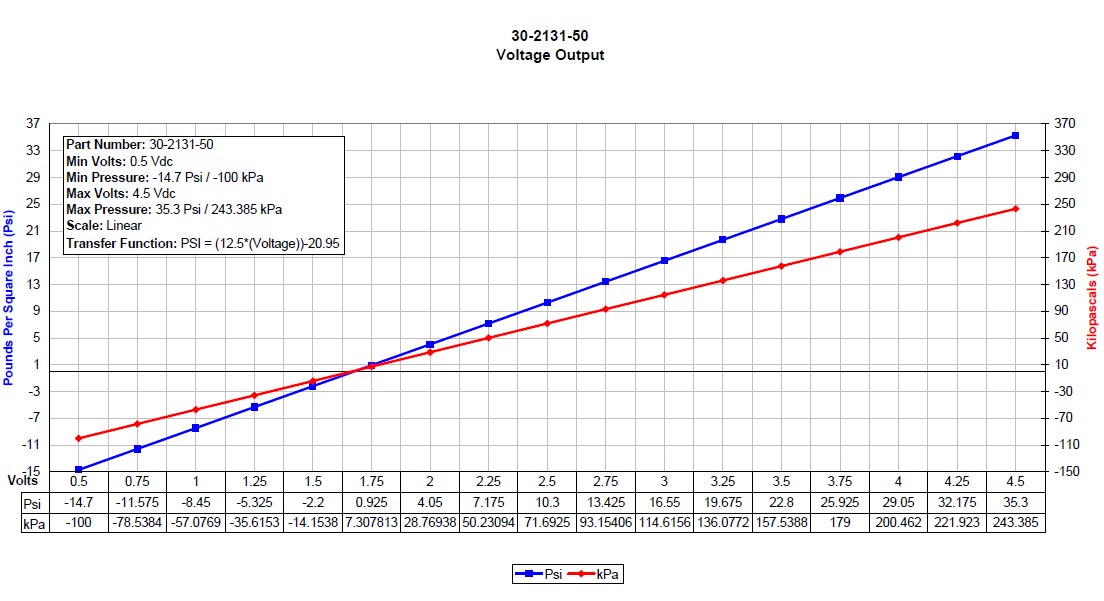

Transfer Function: PSI = (12.5*(Voltage))-20.95
Elec. Termination: Integral weatherproof connector, includes mating connector with 12" leads, 1 Red (Supply Voltage 5Vdc +/- .5), 1 Black (Ground), 1 Green (Output)

AEM offer high quality brass PSIa sensors in 30(2BAR), 50 (3.5BAR) and 75 (5BAR). Brass MAP/PSIa Sensors

Absolute (PSIa) Pressure Sensors

AEM offers high quality stainless steel PSIa sensors in 15 (1BAR), 30 (2BAR), 50 (3.5BAR), and 75 (5BAR). PSIa is referenced to absolute zero. Absolute zero is the pressure measurement when all the pressure exerted by the atmosphere has been removed. The most common use for absolute pressure sensors is reading manifold pressure. PSIa sensors are required of you wish to measure vacuum. A PSIa sensor will read about 14.7 PSI when the sensing element is exposed to atmospheric pressure at sea level however they can be recalibrated to read zero at atmospheric and a negative number at values less than atmospheric pressure.

Which Pressure Sensor is right for you?

There are many different tools that can be used for measurement, but the degree of accuracy is dependent upon the tool. For example, a ruler can measure distance with a good degree of accuracy, but for a more precise measurement a caliper should be used. The difference between a brass pressure sensor and a stainless steel pressure sensor is similar if we think about it in these terms:

Brass Pressure Sensor = Ruler

Use a Brass Pressure Sensor where you need a good reference to what pressure is being seen. Example: Brass Pressure Sensor used for a Boost Gauge – Reference/Information for knowing manifold pressure, not for ECU calibration.

Stainless Pressure Sensor = Caliper

Use a SS Pressure Sensor where you need exact details of the pressure. Example: MAP Sensor information for the ECU – Calibration/crucial information for the ECU.

Features

Brass sensors accurate to within 3% of full scale (pressure sensors)
High-quality sealed sensor housings are virtually impervious to automotive fluids (360-degree welded wetted area)
Connector and pins included

Specs

30-2131-30 - 30 PSIa or 2 Bar Brass Sensor Kit

Accuracy: /- 3% Full Scale over -40C to 105C includes Repeatability, Hysteresis and Linearity
Operating Temp: -40C to 105C / -40F to 221F
Burst Pressure: 60PSI
Response Time: < 1ms
Vibration:100 to 2000Hz, 20g Sinusoidal, 3 Axes
Sensor Body: Brass
Wetted Materials: 304L & 316L Stainless Steel
Thread: 1/8" NPT Male Thread
Weight: < 85 Grams
Supply Current
Output: .5 to 4.5Vdc Linear
Elec. Termination: Integral weatherproof connector, includes mating connector, pins & pin lock
Includes: 30 PSIa or 2 Bar Brass Sensor, Connector, Pins & Pin Lock

30-2131-50 - 50 PSIa or 3.5 Bar Brass Sensor Kit

Accuracy: /- 3% Full Scale over -40C to 105C includes Repeatability, Hysteresis and Linearity
Operating Temp: -40C to 105C / -40F to 221F
Burst Pressure: 100PSI
Response Time: < 1ms
Vibration:100 to 2000Hz, 20g Sinusoidal, 3 Axes
Sensor Body: Brass
Wetted Materials: 304L & 316L Stainless Steel
Thread: 1/8" NPT Male Thread
Weight: < 85 Grams
Supply Current
Output: .5 to 4.5Vdc Linear
Elec. Termination: Integral weatherproof connector, includes mating connector, pins & pin lock
Includes: 50 PSIa or 3.5 Bar Brass Sensor, Connector, Pins & Pin Lock

30-2131-75 - 75 PSIa or 5 Bar Brass Sensor Kit

Accuracy: /- 3% Full Scale over -40C to 105C includes Repeatability, Hysteresis and Linearity
Operating Temp: -40C to 105C / -40F to 221F
Burst Pressure: 150PSI
Response Time: < 1ms
Vibration:100 to 2000Hz, 20g Sinusoidal, 3 Axes
Sensor Body: Brass
Wetted Materials: 304L & 316L Stainless Steel
Thread: 1/8" NPT Male Thread
Weight: < 85 Grams
Supply Current
Output: .5 to 4.5Vdc Linear
Elec. Termination: Integral weatherproof connector, includes mating connector, pins & pin lock
Includes: 75 PSIa or 5 Bar Brass Sensor, Connector, Pins & Pin Lock

Manual

Download

Reviews 1

Write Your Own Review

FAQ(6)

Customer Questions

What is included in the 3.5 Bar / 50 PSIa Brass Sensor Kit?

The kit includes a Brass Sensor Body with 1/8" NPT Male Thread, and a 3.5 BAR / 50 PSIa MAP Brass Sensor connector with pins.

What are the Sensor Performance Specifications?

The sensor has an accuracy of +/- 3% Full Scale over -40C to 105C, operating temperature of -20C to 105C, burst pressure of 100PSI, response time of < 1mS, and output of .5 to 4.5Vdc Linear, among other specifications.

What is the difference between Brass Pressure Sensor and Stainless Pressure Sensor?

A Brass Pressure Sensor is like a ruler, providing a good reference to pressure readings. On the other hand, a Stainless Pressure Sensor is like a caliper, offering exact details of pressure for calibration purposes.

Which Pressure Sensor should I use for my application?

Use a Brass Pressure Sensor for applications where a reference to pressure is needed, such as Boost Gauge readings. Use a Stainless Pressure Sensor for applications requiring precise pressure details, like MAP Sensor information for ECU calibration.

What are the features of the Brass Sensor Kit?

The Brass sensors are accurate to within 3% of full scale, have high-quality sealed sensor housings, and come with connectors and pins included.

Which sensor do I need for an AEM X-Series 2.5 bar boost gauge?

The AEM 50 PSIa (1 to 2.5 bar) sensor kit. It is available in brass (30-2131-50) or stainless (30-2130-50) versions.
